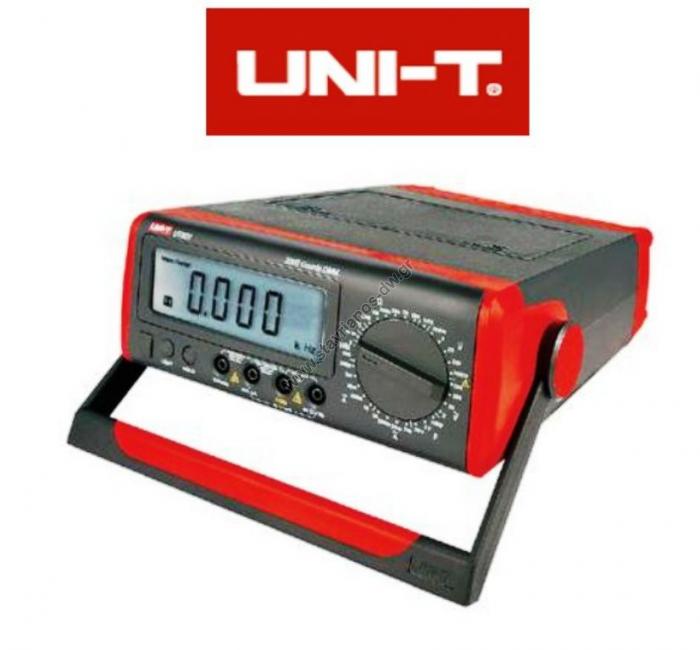

Πολύμετρο πάγκου υψηλής ακριβείας με καπασιτόμετρο-συχνόμετρο και μέτρησης θερμοκρασίας με ενδειξη χαρακτήρων 1999 UT-801
ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
| Basic Functions | Range | Best Accuracy |
| DC Voltage | 200mV/2V/20V/200V/1000V | (0.5%+2) |
| AC Voltage | 2V/20V/200V/1000V | (0.8%+3) |
| DC Current | 200µA/2mA/20mA/200mA/10A | (0.8%+2) |
| AC Current | 2mA/20mA/200mA/10A | (1.0%+3) |
| Resistance | 200W/2kW/20kW/200kW/2MW/20MW | (0.8%+3) |
| Capacitance | 20nF/2µF/200µF | (4%+3) |
| Frequency | 2kHz/200kHz | (1.5%+5) |
| Temperature (°C) | -40°C ~ 1000°C | (1.2%+3) |
| Special Functions | ||
| Transistor | ' | √ |
| Sleep Mode | ' | √ |
| Diode | ' | √ |
| Continuity Buzzer | ' | √ |
| Display Backlight | ' | √ |
| REL | ' | √ |
| Max/Min Mode | ' | √ |
| Low Battery Display | ' | √ |
| Input Impedance for DC Voltage Measurement | >10MW | √ |
| Data Hold | ' | √ |
| Max. Display | 1999 | √ |
| General Characteristics | ||
| Power | AC220V/50Hz or 1.5V Battery x 6 (R14) | |
| LCD Size | 108 x 35mm | |
| Product Colour | Red and Grey | |
| Product Net Weight | 1500g | |
| Product Size | 300 x 245 x 105mm | |
| Standard Accessories | Test Lead, AC220V Power Cord,English Manual, Point Contact, Temperature Probe, Multi-Purpose Socket | |
|
