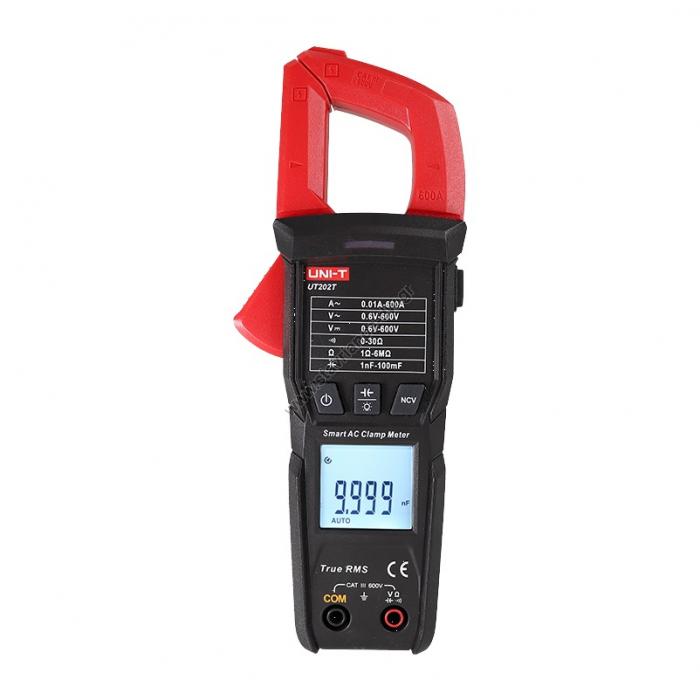

Αμπεροτσιμπίδα DW-47462
ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ : UT-202T
Αμπεροτσιμπίδα
DC V : 600V
AC V : 600V
AC A : 600A
R (Ω) : 6MΩ - 100ΜΩ
Ηz : 40 Hz - 1000 Hz
Cap (F) : 100mF
| Specifications | Range | UT202T | |
| DC voltage (V) | 600V | ±(0.5%＋3) | |
| AC voltage (V) | 600V | ±(0.8%＋3) | |
| AC current (A) | 600A | ±(2.5%+5) | |
| Resistance (Ω) | 6MΩ | ±(0.8%+3) | |
| 100MΩ | |||
| Frequency (Hz) | 40Hz~1000Hz | ±(1.0％+5) | |
| Capacitance (F) | 100mF | ±(4%+5) | |
| Temperature (℃/℉) | -40℃~1000℃/-40℉~1832℉ | ||
| Features | |||
| Jaw opening | 28mm | ||
| Display count | 9999 | ||
| Dual display | √ | ||
| Auto range | √ | ||
| NCV | √ | ||
| Continuity | √ | ||
| PEAK hold | |||
| Low pass filter | |||
| Inrush current | |||
| Audible visual indication | √ | ||
| Low battery indication | ＜2.4V approximately | √ | |
| Data hold | √ | ||
| Auto power off | Approximately 15 minutes | √ | |
| Flashlight | √ | ||
| Bluetooth | |||
| Safety rating | CAT Ⅲ 600V | ||
| General Characteristics | |||
| Power | AAA 1.5V x 2 (δεν περιλαμβανονται) | ||
|
