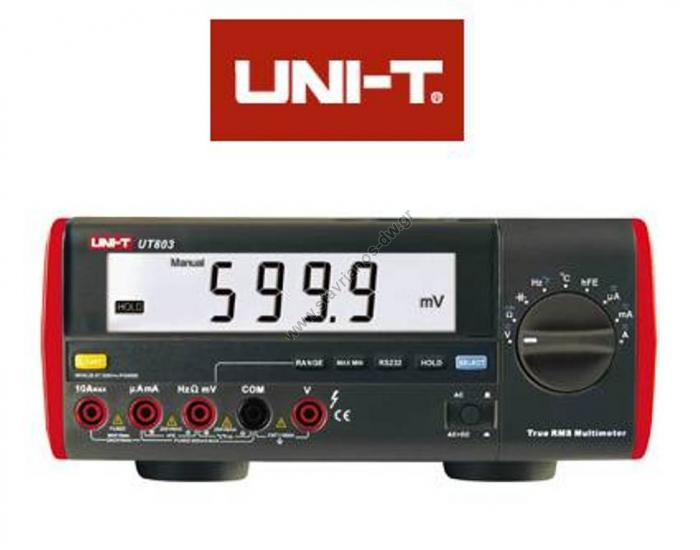

UT-803 Ψηφιακό πολύμετρο πάγκου με αύτόματες κλίμακες της uni-t
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ : UT-803 UNI-T| Basic Functions | Range |
|---|---|
| DC Voltage | 600mV/6V/60V/600V/1000V |
| AC Voltage | 600mV/6V/60V/600V/1000V |
| DC Current | 600µA/6000µA/60mA/600mA/10A |
| AC Current | 600µA/6000µA/60mA/600mA/10A |
| Resistance | 600W/6kW/60kW/600kW/6MW/60MW |
| Capacitance | 6nF/60nF/600nF/6µF/60µF/600µF/6mF |
| Temperature (oC) | -40oC ~ 1000oC |
| Temperature (oF) | -40oF ~ 1832oF |
| Frequency | 6kHz/60kHz/600kHz/6MHz/60MHz |
| Special Functions | |
| Fused 10A Range | |
| Auto Ranging | |
| Voltage & Current : AC+DC Measurement | |
| AC Voltage Frequency | 100kHz True RMS |
| Diode | |
| Continuity Buzzer | |
| Transistor | |
| Max/Min Mode | |
| Data Hold | |
| RS232C | |
| USB | |
| Display Backlight | |
| Full Icon Display | |
| Sleep Mode | |
| Low Battery Display | |
Input Impedance for | 600mV Range : 3GW All Other Ranges : 10MW |
| Max. Display | 5999 |
GENERAL CHARACTERISTICS
| Power | AC220V/50Hz or 1.5V Battery x 6 (R20) |
| LCD Size | 28 x 128 mm |
| Product Colour | Red and Grey |
| Product Net Weight | Around 2kg (Accessories Net Weight : 0.4kg) |
| Product Size | 105 x 240 x 310mm |

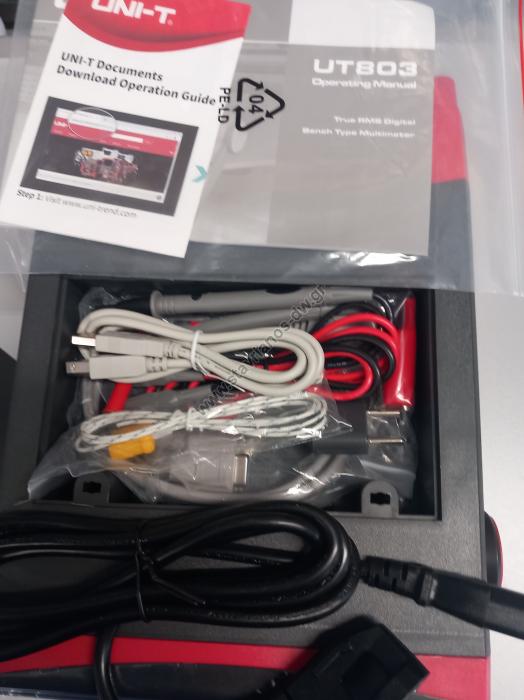

| Standard Accessories | Test Lead, AC220V Power Cord,English Manual, Point Contact Temperature Probe, Alligator Clip,Multi-Purpose Socket, RS232C Interface Cable,USB Interface Cable, Software |
| Optional Accessories* | 1.5V Battery x 6 (R20) |
| Standard Individual Packing | White Box |
| Standard Quantity Per Carton | 4 pcs |
| Standard Carton Measurement | 680 x 370 x 320mm |
| Standard Carton Gross Weight | 10.07kg |
|
